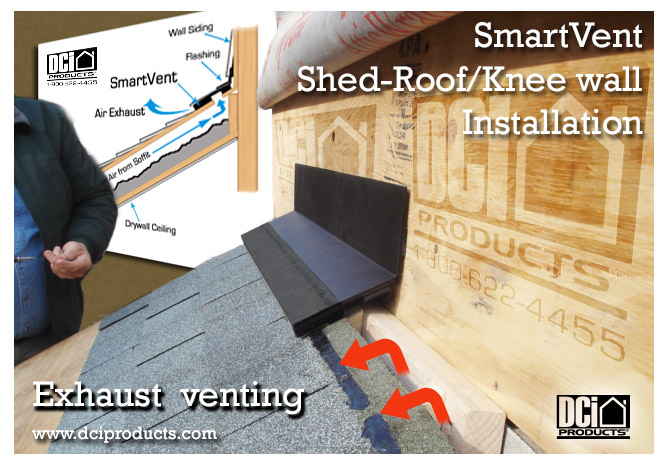

Ventilation of a Shed Roof

Ventilation made easy by using SmartVent on your next shed roof project. When installing a new roof and siding, the standard application of SmartVent on the shed roof is having the exhaust ventilation closest to the shed wall is always the most desired.


Click here for detailed installation instructions

Download the SmartVent Shed roof installation instructions by clicking here

Off-Wall Shed Roof Ventilation

When re-roofing your shed roof, you should make sure you have the proper ventilation to maximize the life of the roof. The easiest way to accomplish this is by using SmartVent as an off-wall shed exhaust.Ventilating the shed roof without removing the existing flashing and siding off of the shed wall means one less hassle and one less chance of having the expense to replace the wall siding and losing the bid.

Click here for detailed installation instructions

Download the SmartVent Off-Wall installation instruction by clicking here

Shed Roof Ventilation Instructions

Step 1

Shingle up to the area that requires the SmartVent Roof to Wall vent application.

Step 2

Measure 3” out from the wall where the SmartVent will bend up on the wall. Strike a chalk line at the 3” mark along the roof decking and cut out the roof decking (leave about 12” of decking uncut at roof edges or before any wall, valley, hip, etc.). Ensure the cuts do not penetrate the roof rafters. Remove roof decking and ensure there is at least 1” of clear space between roof decking and header board. This allows the air to escape. Complete the shingling to the slit cutout but ensure the shingles do not cover the cutout opening.

Step 3

Install the SmartVent end fabric at the roof edge hanging half, 5.25”,beyond the roof edge and nailing (Note: The fabric can be folded to 6” X 10.5” to fit properly before nailing to cover the SmartVent roof edge. Fabric is not required on the section of SmartVent attached to the wall, only the roof area).

Next, install the SmartVent by bending at the routed hinge and having the uneven side of the vent placed against the wall and roof surfaces. The smooth side will be showing and nailed at 2” in from ends (along the black nail line in the fabric) and two nails evenly spaced between them. Nail the vent to the wall with matching spacing of nails. Nail length should penetrate through roof decking. Ensure the SmartVent is placed tight against the roof and wall before securing with nails. Continue to end.

Step 4

Complete the SmartVent end of the run by installing the end fabric at the shingle edge by folding one side over to make a  6” X 10.5” piece of fabric. Nail half on the roof (5.25”) and leave half ( 5.25”) hanging over the roof edge and placing the last cut piece of SmartVent over the fabric but even with shingle gable edge. Wrap the remaining fabric tightly over the top of the SmartVent even with the shingle end and nail.

Step 5

It is recommended to install ice shield on top of the SmartVent extending up the wall about 12” to ensure a weather tight seal. Next, shingle above the SmartVent to the wall overhanging the top shingle past the SmartVent lifted edge by ½”and then install a metal flashing that covers at least 4” of the shingle and extends up the wall at least 4”. Metal flashing only can be used but ensure all openings and edges are completely sealed such as lower window corners and ‘caulk bend’ type flashing details. When metal flashing only is used ensure it over hangs the SmartVent lift end by ½” and up the wall 4” minimum. Secure flashing to wall.
SmartVent is rated at 9 NFVA.

Off-Wall Shed Roof Ventilation Instructions

Step 1

Shingle up to the area that requires the SmartVent Roof to Wall vent application.

Step 2

At the location of the shingle course (where the SmartVent is to be located)
measure up from the bottom of the shingle (the weather edge) 6” to 7” before
installing the actual shingle.

Step 3

Make lines at the 6” and 7” marks and cut through the top of the previously
installed shingle and the plywood only.(or 1.75” holes @ 3” centers)
Do not cut the rafters!

Step 4

Remove the plywood decking after the continuous cut and ensure the air flow is open from the shed wall vent to the soffit area.

Step 5

Nail the SmartVent similar to the eave detail and make it even with the bottom edge of the course of shingle next to be installed.

Step 6 Apply a roll of ice shield on top of the SmartVent even at the lower lift edge and directly to the plywood above the vent. If tarpaper was already installed, gently tuck the ice shield under the higher course of tarpaper so it laps over the ice shield by at least three inches or more.
Step 7 Install a starter course of shingle slightly overhanging the SmartVent bottom edge about 3/8” to 1/2”. Align shingles per manufacturers’ directions.
Step 8 Install the shingles over the starter course as you would normally at the eaves edge and continue up the roof. The installation at the mid-roof is very similar to that of the eaves edge. If you have any questions or comments on installation please call 1-800-622-4455 and ask for a roof ventilation technician to assist you.
Note: Stop any roof deck 1” cuts about 12” from rake edges, dormer walls or valley areas, or at ends of the SmartVent runs, etc. Use the enclosed fabric at the open ends of SmartVent to seal for weather and insects. Cut SmartVent even at the rake edges, miter SmartVent in the valley and hip areas and return miter SmartVent to end at locations inside the roof edging. The ‘return miter’ is available to see on our website or call to receive this installation detail.

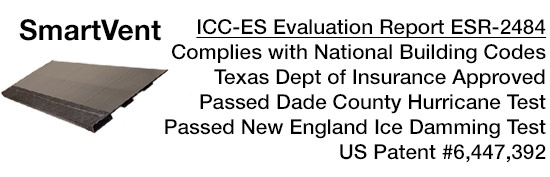

What is SmartVent?

SmartVent is a tapered, under shingle plastic product designed for installation along the soffit edge of the roof or the facing edge of dormer rakes and goes virtually unnoticed. It allows air to flow freely through the 1" roof decking slit providing more than adequate soffit ventilation to maximize ridge vent effectiveness. This is extremely important since most ridge vent products require an equal amount of ventilation at the soffit in order to work properly. SmartVent, when used at both soffits, has a total NFA rating of 18 sq. in.per foot(or 9 sq. in. per foot on each side of a standard gable roof).

Click here for SmartVent Specifications

Most houses with ridge vents do not have the proper soffit ventilation required because attic insulation blocks the soffit vents. SmartVent allows cooler air to enter under the shingle, through the 1" roof slit and out the ridge vent providing superior air flow and attic cooling.
